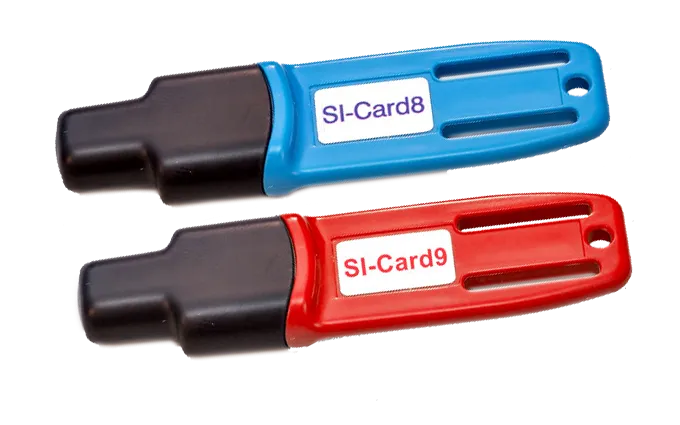

SI-Card8/9
- Advanced passive punching card for orienteering and outdoor sports
- High punching speed
- Extended range of unique card numbers
- Stores users personal data
Specification
| Property | SI Card8 | SI Card9 |
|---|---|---|
| Model type | Finger stick | Finger stick |
| Number range | 2 000 000 … 2 002 999, 2 004 000 … 2 999 999 | 1 000 000 … 1 999 999 |
| Typical applications | School sports, orienteering | Orienteering, adventure and outdoor sports |
| Data exchange time | 115 ms | 115 ms |
| Clear time | < 2 s | < 2 s |
| Intermediate times | 30 | 50 |
| Special records | CLEAR/CHECK, START, FINISH | CLEAR/CHECK, START, FINISH |
| Time format | 24h format, day of week, counter for up to 4 weeks | 24h format, day of week, counter for up to 4 weeks |
| SI-System compatibility | SI-Stations BSF7/8 | SI-Stations BSF7/8 |
| Firmware | V 6.00 and higher | V 6.00 and higher |
| Operating range | -20°C … +50°C | -20°C … +50°C |
| Protection class | IP 67 (DIN EN 60529) Protection against penetration of dust Protection against the ingress of water during short-term immersion | IP 67 (DIN EN 60529) Protection against penetration of dust Protection against the ingress of water during short-term immersion |
| Warranty | 5 years | 5 years |
| Weight | 8 g | 8 g |
| Dimensions | 71 mm x 19mm x 8 mm | 71 mm x 19mm x 8 mm |
| Customer services | - | Online reservation service, custom specific imprint |
